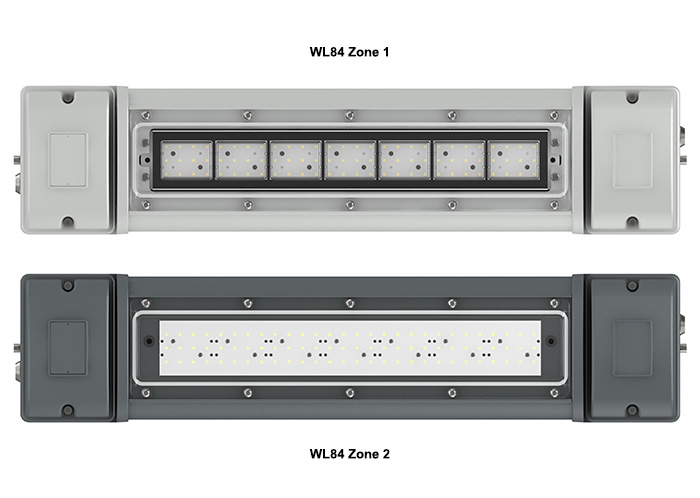

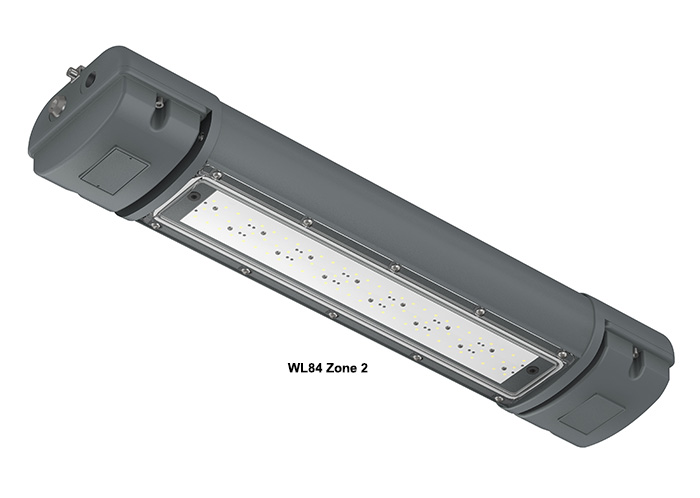

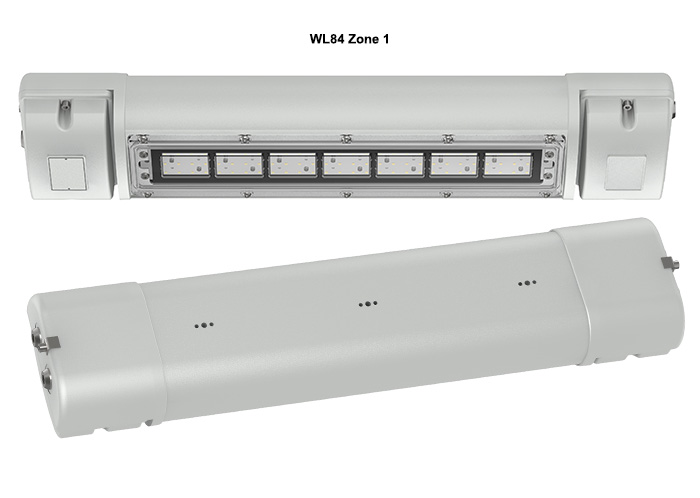

SPARTAN Linear Luminaires are pending ATEX and IECEx approval for all Zone 1 and Zone 2 applications and rated for T4, T5 and T6 environments/locations.
Designed for both new installations or to retrofit existing installations the overall dimensions, fixing centres and gland entries are compatible with commonly used traditional Ex e 2x18W fluorescent luminaires. The lumen output and light distribution will allow a direct, easy replacement to traditional fluorescent luminaires allowing the customer to access all the benefits of LED lighting and making regular lamp changes no longer necessary. Available in both standard and emergency versions.
| Product reference | SPARTAN Linear WL84 |
|---|---|
| Lumen Output | 2500 lm |
| Input | 110-254V 50/60Hz AC only. Low voltage option also available. |
| Consumption | 34W |
| IP Rating | IP66 & IP67 |
| Certification | ATEX and IEC Ex rated for zone 1&2 Gas and Dust, UL/CSA including CID2 |
| Temperature Range | -40° to +55°C (-40 to 131°F) |
| Weight | 6kg (13.2lbs) |
| Dimensions | 772 x 108 x 174mm (30.4 x 4.3 x 6.9”) |
- Datasheet: SPARTAN Zone 1 Linear WL84 (119 KB)
- Datasheet: SPARTAN Zone 2 Linear WL84 (156 KB)
- SPARTAN Zone 1 Linear ATEX Certificate (48 KB)
- SPARTAN Zone 1 Linear IECEx Certificate (200 KB)
- SPARTAN Zone 2 Linear ATEX Certificate (391 KB)
- SPARTAN Zone 2 Linear IECEx Certificate (608 KB)
- SPARTAN Linear UL/CSA Certificate (137 KB)
- ABS Certificate (2 MB)
