Special Features
- Suitable for all areas that require efficient and extremely robust Ex-safe lighting
- Robust aluminium casing that can withstand forces up to 10 J
- High protection category: IP 66
- Withstands corrosive applications and salt water
Anywhere that flammable gases, vapours or dusts occur which mix with air or oxygen is at risk of explosion. This does not just relate to plants in the chemical industry and mining, but even bottling plants for high-percentage spirits or a grain silo can represent a potential source of explosion. Any unwanted explosion endangers the health and lives of anyone located nearby and is very likely to lead to serious material damage.
Where safety is an absolute must, GIFAS Ex products are used wherever there is a risk of explosion. Tested quality guaranteed.

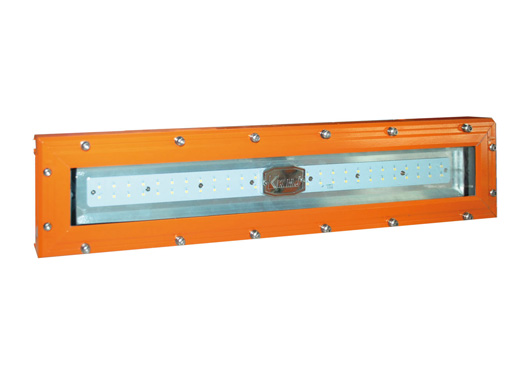

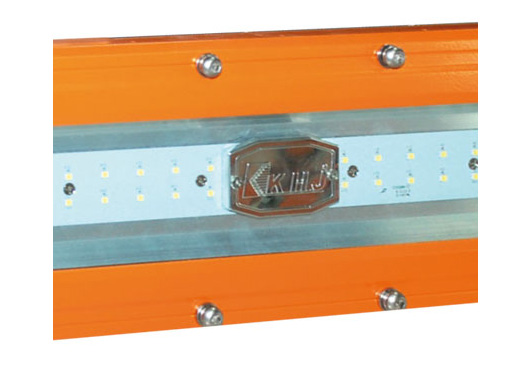

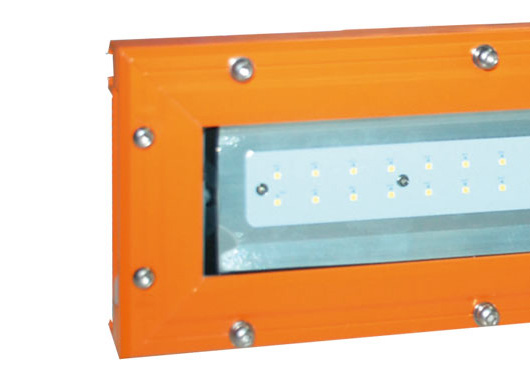

The Ex strip luminaire is suitable for all areas that require efficient and extremely robust Ex-safe lighting. The robust aluminium casing can withstand forces of up to 10 Joule. The high IP66 protection category makes this light suitable for even the most challenging of locations, and ensures it is able to withstand even corrosive applications and salt water.
Technical Data
| Technical Data | ||
|---|---|---|
| Labelling |  II 2 G Ex d eb IIB T6 Gb II 2 D Ex tb IIIC T80°C Db |
|
| Ex zones | 1, 2, 21 and 22 | |
| Input voltage | 100~277VAC (50/60Hz) | |
| Light source | SEOUL SMD-LEDs | |
| System performance | 36/56W | |
| Light current | 36W | 4554lm |
| 56W | 7084lm | |
| Light colour | average 6000K | |
| Operating life | >50,000h | |
| Protection category | IP66 | |
| CRI-Index | Ra >80 | |
| Operating range of temperature | -40°C to +55°C | |
| Weight | 36W | 6.4kg |
| 56W | 8.7kg | |
| Measurements (WxHxL) | 36W | 187x80x600mm |
| 56W | 187x80x1130mm | |
Product Range
| Item no. | Description |
|---|---|
| 800023 | Ex strip luminaire 36W 120°, incl. mounting bracket |
| 800024 | Ex strip luminaire 56W 120°, incl. mounting bracket |
