Key Features
- ATEX Directive Compliant
- IECEx Scheme Certified
- Explosive gas, vapour and mist certified
- Models for use in Zone 1 and Zone 0 gas atmospheres
- T3/T4 temperature class
- High Power LED light source
- Lightweight, ergonomic design
- Single handed switching
- Hands free operation
- IP66 water and dust tight
- Adjustable, removable headband
- Supplied with helmet clips for hard hat use
- Tilt adjustment for light direction
- HT-650 Headtorch supplied with inert silicone rubber strap
The Wolf ATEX LED Headtorch range offers the perfect answer for applications where hands free lighting is essential, particularly where access is difficult, requiring climbing or crawling. They are ATEX approved for safe use in Zones 1 & 2 Hazardous Areas with the HT-650 certified for use in Zone 0 also.
The HT-400, HT-600 and HT-650 Headtorches have been Certified by Baseefa for use in explosive atmospheres. They are CE marked in compliance with the 94/9/EC (ATEX Equipment) Directive, for use in hazardous area activities within the EU. In addition they are IECEx Scheme certified for use in other countries throughout the world. The approval code allows the HT-400 and HT-600 to be used in Zones 1 & 2 hazardous areas with the HT-650 Certified for use in Zone 0 also. This approval code also covers all group II (industrial) gas apparatus groups, for potentially explosive gases, vapours and mists up to T4 temperature class, and group I M2 mining applications.

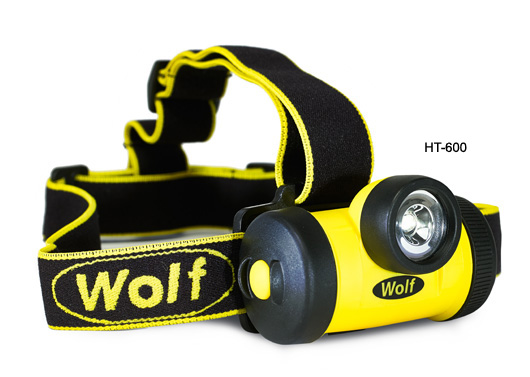

The HT-400 Headtorch is a mini, lightweight headtorch weighing only 90 grams including batteries, whilst the larger HT-600 and HT-650 models weigh 180 grams. They are all constructed from robust, highly durable, high impact thermoplastic materials which are chemical resistant and electrostatic non hazardous, and is fitted with a shatterproof polycarbonate lens. The headtorches have a tilt adjustment mechanism to allow the user to angle the light, and utilise bespoke optics for a broad spot beam suitable for close up hands free inspection and maintenance tasks.
The Wolf ATEX LED Headtorches have a long life, ‘fitted for life’, high power LED light source. The HT-400 has up to 75 lumens of light output, with an optimum light duration of approximately 8.5 hours a set of three AAA alkaline cells. The HT-600 and HT-650 has a more powerful light output of up to 130 lumens with an optimum light duration of approximately 17 hours from a set of three AA alkaline cells. The use of primary cells makes these product a more economical solution for personal lighting requirements in many applications arising in Hazardous Area confined spaces. The ATEX LED Headtorch range has been designed for single handed switching and is water and dust tight to a minimum of IP66.
The HT-400, HT-600 and HT-650 are supplied fitted with an adjustable removable fabric head band allowing the headtorch to be comfortably worn directly on the head for extended periods. A set of 4 helmet clips is supplied with the HT-400, HT-600 and HT-650 to allow the headtorch to be securely attached to a hardhat or safety helmet. The HT-650 is also supplied with an easy clean inert silicone rubber strap which allows the headtorch to grip to hard hats and safety helmets.
Wolf ATEX LED Headtorch HT-400
High Power LED spot beam (approx 20°)
Peak luminous intensity at 1m 381 lux, at 2.5m 52 lux
Extra wide angle fringe beam (approx 85°)
Peak luminous intensity at 1m 25 lux, at 2.5m 6 lux
Wolf ATEX LED Headtorch HT-600/HT-650
High Power LED spot beam (approx 22°)
Peak luminous intensity at 1m 493 lux, at 2.5m 67 lux
Extra wide angle fringe beam (approx 100°)
Peak luminous intensity at 1m 32 lux, at 2.5m 8 lux
Product reference | HT-400 | HT-600 | HT-650 | |
---|---|---|---|---|
Product description | Mini ATEX LED Headtorch, Mini - Zone 1 - LED - Up to 75lm Gas Zone: 1 and 2 Dust Zone: 21 and 22 | ATEX LED Headtorch, Zone 1 | ATEX LED Headtorch, Zone 0 - LED - Up to 130lm Gas Zone: 0, 1 and 2 Dust Zone: 20, 21 and 22 |
|
Code | Industrial | II 2 GD Ex ib IIC T4 Gb IP66 / Ex ib IIIB T125°C Db | II 2 G Ex ib IIC T4/T3 Gb IP66 | II 1 GD Ex ia IIC T4/T3 Ga IP66 / Ex ia IIIB T155°C Da |
Mining | I M2 Ex ib I Mb IP66 | I M2 Ex ib I Mb IP66 | I M1 Ex ia IMa IP66 | |
Type of protection | 'ib' Intrinsic Safety | 'ib' Intrinsic Safety | 'ia' Intrinsic Safety | |
Area of Classification (Gas) | Zones 1 and 2, Gas groups IIA, IIB, IIC | Zones 1 and 2, Gas groups IIA, IIB, IIC | Zones 0, 1 and 2, Gas groups IIA, IIB, IIC |
|
Temp. Classification (Gas) | T4 | T4/T3 | ||
Ambient temperature | -20°C to +40°C | |||
Area of Classification (Dust) | Zones 21 and 22 | Zones 20, 21 and 22 | ||
Max Surface Temp. (Dust) | 125°C | 155°C | ||
Certificate | Baseefa10ATEX0067, IECEx BAS 10.0023 |
|||
Enclosure | High impact thermoplastic, chemical resistant, electrostatic non-hazardous |
|||
Lens | Shatterproof polycarbonate | |||
Beam type | Broad spot with wide angle fringe light | |||
Light source: | Type | High power LED | ||
Output | Up to 75 lm | Up to 130 lm | ||
Life | 25,000+ hours (fitted for life) | |||
Power source: | Pt. no. | 3 x LT-401 (LR03 Cells) | 3 x HT-210 (LR6 Cells) | |
Type | LR03 primary cells, to IEC 60086, Alkaline AAA | LR6 primary cells, to IEC 60086, Alkaline AA | ||
Volts | 3 x 1.5v | 3 x 1.5v | ||
Light duration | Up to 8.5 hours | Up to 17 hours | ||
Ingress protection | IP66 | IP66 | ||
Weight (inc. cells) | 0.090Kg | 0.180kg |
Changes may be made to the above specification without notification, details are available on request.
