Key Features
- ATEX certified for explosive gas and dust approval
- High output LED light source
- Duration up to 27 hours from 2 x 1.5V D Cells LR20
- T4 temperature class
- IP67 dust and watertight
- Low battery indicator
- Simple, robust design
- Straight and right-angle versions
- Single handed switching
- LED module can be retro-fitted to Wolf T4 bulb torches
The Wolf ATEX Safety Torches with LED give reliable, simple, cost effective, high output LED performance in a straight or right-angle body style. The TR-30+ and TS-30+ torches, incorporating the Wolf TP-300 ‘Torch LED Module’, give an exceptional output of up to four times more light than an incandescent torch bulb, generating a piercing white spot beam combined with a wide angle flood of fringe light, for excellent visibility in conditions of darkness or reduced visibility.
With a typical life of over 25,000 hours, the TP-300 LED is expected to last the product lifetime, minimising product maintenance and eliminating risk of light source failure. Additionally the highly efficient LED technology gives an increased battery duration of up to 27 hours from a set of two alkaline ‘D’ cells, more than twice the duration from a conventional safety torch using the same cells.
The TP-300 incorporates a low battery indicator, emitting a flashing red indicator to show good battery power and correct torch function, changing to solid red to warn of ‘low battery’ power. After several hours in the ‘low battery’ phase, the light will cut out.
The Wolf ATEX Torch range is CE marked compliant with the 94/9/EC ATEX Explosive Atmospheres Equipment Directive. Certification to the latest standards is for use in potentially explosive gas, vapour and mist atmospheres, zones 1 and 2, temperature class T4. Dust ignition protection covers use in zones 21 and 22, with the certified maximum surface temperature of 95°C. Temperature ambient of use is from -20°C to a maximum of +40°C or 55°C with certain cells as specified in the instructions.
The compact Wolf TS-30+ and TR-30+ Torch bodies, in straight or right-angle forms, have an enhanced ergonomic design for easy grip and single handed switching, even with gloved hands. The torch bodies offer high strength and proven impact resistance even at sub zero temperatures using carefully selected thermoplastic resins with excellent chemical resistance. Additionally, the rubber armoured lens ring and end cap give enhanced grip and shock protection. The shatterproof polycarbonate lens has a scratch and chemical resistant coating.
The Wolf ATEX Torches are sealed dust tight and protected from water immersion with a certified IP67 enclosure. The right angle model incorporates a replaceable high strength thermoplastic belt clip for hands-free use. Both models allow straight forward battery replacement. All models are supplied with wrist straps.
As well as for use in the TR-30+ and TS-30+ torches, the TP-300 ‘Torch LED Module’ can be ‘retro-fitted’ by the user into the Wolf ATEX Safety Torch T4 models including; TR-24, TR-24+, TS-24 or TS-24+ to bring these same improvements to Wolf ATEX T4 torches already in use.

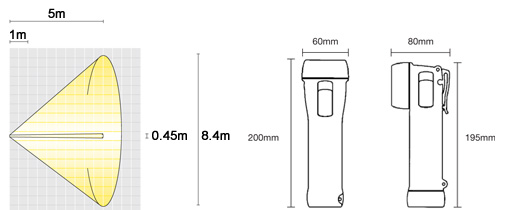

Wolf ATEX Safety Torch with LED
70 lumens beam (approx 5°)
Peak luminous intensity at 1m, 8600 lux
Peak luminous intensity at 5m, 291 lux
| Product reference | TR-30+ | TS-30+ | |
|---|---|---|---|
| Product description | Primary Cell LED Right Angle or Straight Safety Torch | ||
| Right Angle Zone 1 & 21 | Straight Zone 1 & 21 |
||
| Code (ATEX & IECEx) | I M2/II 2GD Ex ib I Mb/IIC T4 Gb -30°C ≤ Ta ≤ 40/55°C Ex ib IIIB T130°C Db | I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20°C ≤ Ta ≤ 40/55°C Ex ib IIIB T130°C Db |
|
| Type of protection | 'ib' intrinsic safety | ||
| Area of Classification (Gas) | Zones 1 & 2 Gas Groups IIA, IIB IIC |
||
| Temperature Classification (Gas) | T4 | ||
| Ambient temperature (gas) | -20°C to +40°C/+55°C | ||
| Area of Classification (Dust) | Zones 21 and 22 Dust Groups IIIA and IIIB |
||
| Max Surface Temp. (Dust) | T130°C | ||
| Ambient Temperature | -30° to +40 / 55°C | -20°C to +40 / 55°C | |
| Maximum ambient temperature is for use only with certain specified cells, as per product instructions. |
|||
| Certificate | ATEX Baseefa 07ATEX0091X / IECEx BAS 06.0089X | ||
| Enclosure | Impact Resistant Thermoplastic, Chemical Resistant, Static Dissipative | ||
| Lens | Toughened Glass 4mm | ||
| Beam type | Medium Spot with Wide-Angle Flood of Fringe Light | ||
| Light source: | Part No. | TP-300 | |
| Power | Torch LED Module | ||
| Output | 70 lm | ||
| Life | 25,000 hrs plus (fitted for life) | ||
| Power source: | Part. no. | 2 x H-20 (1 x LR-20 Cell suitable for 55° Maximum Ambient Temperature) (Batteries not supplied with torch) |
|
| Type | LR20 Primary Cells to IEC60086 | ||
| Volts | 2 x 1.5v | ||
| Low Battery Indicator | Yes | ||
| Light duration | Up to 22 hours to low power indicator up to 27 hours total | ||
| Ingress protection | IP67 | ||
| Weight (inc. cells) | 0.500Kg | 0.475Kg | |
Changes may be made to the above specification without notification, details are available on request.
