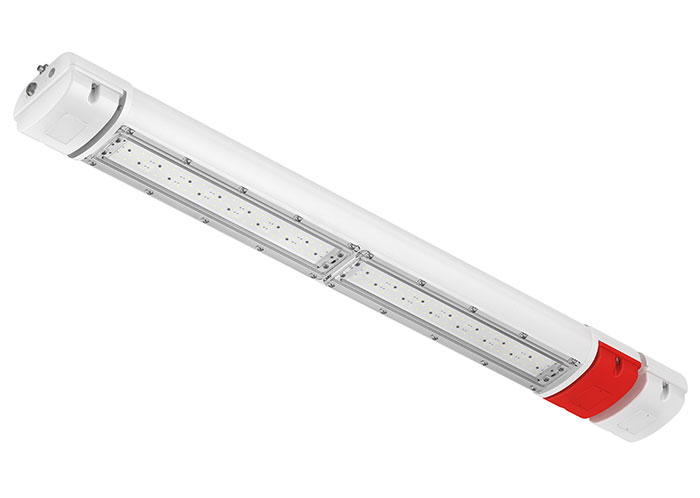

The SPARTAN Industrial Linear range is designed specifically for industrial applications.
Designed for both new installations or to retrofit existing installations the overall dimensions, fixing centres and gland entries are compatible with commonly used traditional Ex e 2x18W or 2x36W fluorescent luminaires. The lumen output and light distribution will allow a direct, easy replacement to traditional fluorescent luminaires allowing the customer to access all the benefits of LED lighting and making regular lamp changes no longer necessary. Available in both standard and emergency versions and using Raytec’s field-proven long-life LED technology, SPARTAN linear are suitable for a wide range of industrial applications.
| Product reference | SPARTAN Linear WL168 Industrial |
|---|---|
| Lumen Output | 5500 lm |
| Input | 110-254V 50/60Hz AC only, 18/30V AC/DC |
| Consumption | 71W |
| IP Rating | IP66 & IP67 |
| Temperature Range | -20° to +60°C (-4 to 140°F) |
| Weight | 10kg (22.05lbs) |
| Dimensions | 1407 x 108 x 174mm (53.4 x 4.3 x 6.9”) |
