Special Features
- Sturdy, shatter-proof polyamide housing
- Up to 8 hours of light in three selectable operating modes
- Broad beam concentrated, narrow and wide light beam – Work light (emergency light) broad light cone
- Side light space-illuminating economy light
- Extremely bright light
- incl. charger with corrosion-resistant contacts
- Charging station can be used as a wall-mounted model
- Overcurrent, temperature and deep discharge protection
- Vertical-swivel lamp head, dimmable, flash mode
- Memory function = last setting is saved
- The light can be locked in the charging station (shackle lock not included in the scope of delivery)
Anywhere that flammable gases, vapours or dusts occur which mix with air or oxygen is at risk of explosion. This does not just relate to plants in the chemical industry and mining, but even bottling plants for high-percentage spirits or a grain silo can represent a potential source of explosion. Any unwanted explosion endangers the health and lives of anyone located nearby and is very likely to lead to serious material damage.
Where safety is an absolute must, GIFAS Ex products are used wherever there is a risk of explosion. Tested quality guaranteed.

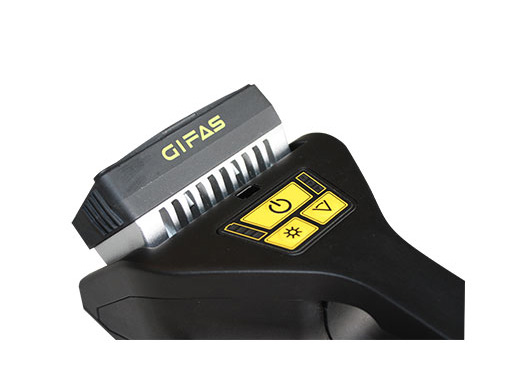

The tried-and-tested FlashLED concept is now also available for areas at risk of explosion! As a result, GIFAS is offering a powerful work and inspection light with emergency light function for explosive areas. The FlashLED-Ex is equipped with an environmentally friendly, rechargeable lithium polymer (LiPo) battery. The light is charged outside the explosion- risk area. The FlashLED-Ex is certified and satisfies the requirements of the European Low-Voltage Directive 2006/95/EC, Directive 2004/108/EC on Electromagnetic Compatibility and ATEX Directive 94/9/EC.
Technical Data
| Technical Data | ||
|---|---|---|
| Labelling |  II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db |
|
| Certification | 2004/108/EC Directive on Electromagnetic Compatibility ATEX Directive 2014/34/EU | |
| ATEX Certification No. | DEKRA 12ATEX0193X | |
| EX zones | 1, 2, 21 and 22 | |
| Input voltage | 230VAC, 12/24VDC | |
| Power supply | Lithium polymer rechargeable battery | |
| Charging time | 6.5 hours | |
| Light duration | max. 8h, depending on type of operation | |
| Light source | 5x1,6W Power LEDs, white | |
| Protection category | IP65 | |
| Operating range of temperature | -20°C | |
| Temperature class | T4 | |
| Gas group | IIC | |
| Dust group | IIIC | |
| Weight | Light | 1.4kg |
| Charging station | 700g | |
| Measurements (WxHxD) | Light excl. charging station | 125x260x92.5mm |
| Light incl. charging station | 149x332x106mm | |
| Charging station | 149x276x95mm | |
Product Range
| Item no. | Description |
|---|---|
| 800011 | FlashLED-EX rechargeable hand-held light |
| 860032 | Charger / wall bracket 230V |
| 860027 | Charger / wall bracket 12/24V |
| 266884 | Charging cable 12/24V |
| 266850 | Carrying strap |
