Special Features
- Suitable for use indoors and out
- Sturdy and flexible
- Extremely high durability (corrosion resistance)
- Can provide a compressed air connection
- Can be fitted with low-voltage combiners, data processing modules, command and signalling devices
- Can be combined with compressed air, data and water connections
- Optional: terminal blocks
Product Features
- Suitable for indoor and outdoor use
- Closed aluminium profile
- Sturdy design, excellent stability
- Corrosion-free
- Surface impervious to dirt
- Individual equipment on all 4 sides
- Separator plate to separate various power circuits
- Customer-specific equipment
- All kinds of drilling patterns and use of single or multiple frames are possible
- Ceiling connection variant for vertical connection technology
- Can be equipped up to a height of 6m
Technical Data
| Material | anodised aluminium Fastening material V2A |
| Protection category | IP54 = splashproof (with corresponding built-in elements) |
| Dimensions | 160x110mm closed aluminium profile length as per the customer's wishes up to 6m |
| Equipment | as per the customer's wishes on all four sides |
| Colour | anodised silver other RAL colours available upon request |
| Terminal blocks | up to 16mm2 5-pole, L1, L2, L3, N, PE mounted on carrying rail system |
| Base plate included | 4 fastening screws DIN 7991.M8.40.VA 4 brass dowels |
Possible Connection Combinations
Electricity
Water
Compressed air
Video, audio
Data and telephone combinations Low-voltage combinations
CEE surface-mounted sockets up to 63A etc.
Product Range
| Height in mm | Protection category | Drill holes | |
|---|---|---|---|
| Side A | Side B | ||
| 200 | IP 20 | 2 | |
| 200 | IP 54 | 2 | |
| 200 | IP 20 | 2 | 2 |
| 200 | IP 54 | 2 | 2 |
| 300 | IP 20 | 2 | |
| 300 | IP 54 | 2 | |
| 300 | IP 20 | 2 | 2 |
| 300 | IP 54 | 2 | 2 |
| 300 | IP 20 | 3 | |
| 300 | IP 54 | 3 | |
| 300 | IP 20 | 3 | 3 |
| 300 | IP 54 | 3 | 3 |
| 500 | IP 20 | 3 | |
| 500 | IP 54 | 3 | |
| 500 | IP 20 | 3 | 3 |
| 500 | IP 54 | 3 | 3 |
| 500 | IP 20 | 5 | |
| 500 | IP 54 | 5 | |
| 500 | IP 20 | 5 | 5 |
| 500 | IP 54 | 5 | 5 |
| Article numbers on request | |||
Supplied Package

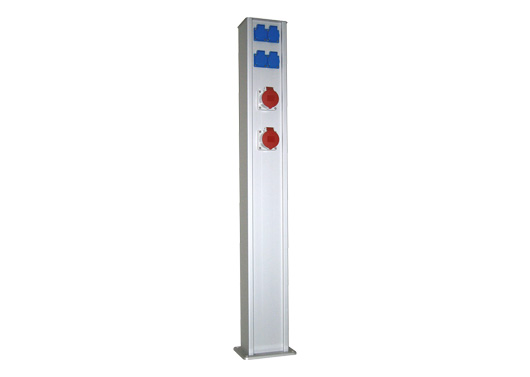

Aluminium column
Base and cover plate
Terminal block up to 16mm2
Fastening screws for the standard device range
Fastening screws for the base plate incl. dowel
Also equipped as necessary (CEE built-in sockets, fuses, etc.)
- Cover plate
- Aluminium column
- Height as per the client’s wishes (max. 6m)
- Cover
- Securing elements
- Automated unit safety cap
- With customer-specific equipment
- Terminal block
- Base plate
| Hole size Ø | Equipment |
|---|---|
| 63mm | Standard 10/16 A devices, 230V Communication technology (TCU) |
| 68mm | Standard 10/16 A devices, 230V (cavity wall socket) |
| 45mm | Protective contact socket with flap cover |
| 61mm | CEE built-in socket 5x16A, 400V CEE built-in socket 5x32A, 400V |
