Home > Products > Series 521 Sheet Steel Cable Reel

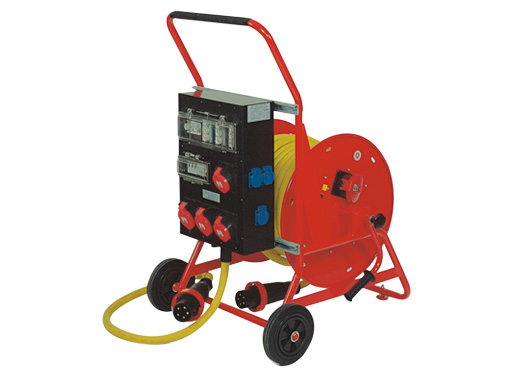

Series 521 Sheet Steel Cable Reel


Special Features

  • Also available with mobile trolley!
  • Alternatively, with solid rubber distributor!
  • GIFAS PROFLEXX H07 cable
  • “Traffic-light red” signal colour, RAL 3020
  • Bearing-mounted drum body made from sheet steel
  • Carrying handles on either side, can also be used as a crank
  • Insulated handle
  • Low centre of gravity
  • Large, solid rubber wheels
  • Built in accordance with VDE 0620 and 0623 Part 2

The GIFAS cable reels guarantees an absolute safety and proper function. Thanks to its robustness, it makes them suitable for diverse applications in industrial, construction and industry.Various mounting options are already available from stock.

Technical Data

Technical Data
DimensionsWxHxD=720x1130x775mm
Dimensions of reel bodyØ 570mm, width 420mm
Weight (without cable)approx. 24kg
Protection categoryIP X4

Capacities

5×6.0mm2 / 100m
5×10.0mm2 / 80m
5×16.0mm2 / 60m

Product Range

Item no.DescriptionInputOutputFusesSymbols
130137Sheet steel cable reel 521, moveable100m 5x6.0 mm2 with CEE 5x32A/400V1 CEE 5x32A/400VRCCB/MCB 16/0.03A 2p CGIFAS Big Red Socket
206388Sheet steel cable reel 521, moveable50m 5x16.0 mm2 with CEE 5x63A/400V1 CEE 5x63A/400VGIFAS XL Red Socket
210711Sheet steel cable reel 521, moveable30m 5x35.0 mm2 with CEE 5x125A/400V1 CEE 5x125A/400VGIFAS XXL Red Socket
207356Sheet steel cable reel 521, moveable, with mounted solid rubber distributor 780025m 5x16.0 mm2 with CEE 5x63A/400V2 CEE 5x32A/400V
2 CEE 5x16A/400V
3 protective contact sockets		GIFAS Big Red SocketGIFAS Big Red SocketGIFAS Red SocketGIFAS Red SocketGIFAS Small Blue SocketGIFAS Small Blue SocketGIFAS Small Blue Socket

All components can be supplied as spare parts. Other equipment options available upon request.

Product Features

  • Superlative mechanical stability – Alkali / acid resistance
  • High protection category IP 65 – Flame-resistant, halogen-free,
  • Self-extinguishing as per VDE 0471
  • Ready-to-connect, tested solution for
  • Safe and rapid assembly
  • Grey / black solid rubber housing made from special GIFAS rubber mixture

Technical Data

Transport Trolley Technical Data
DimensionsHxWxD=1200x590x566 mm
Weight (complete)approx. 70.0 kg
