Leadlamp Stands
The range of tripods available are lightweight making them easily transportable. Once assembled the tripod gives a stable platform allowing the lamps to be used at a variety of heights and positions.
Product reference | LL-685 | LL-680 | LL-699 | ||||||
---|---|---|---|---|---|---|---|---|---|
Product description | 4 Leg Stainless Steel Stand | Tripod Stand | Tripod Stand | ||||||
Materials | Non-ferrous stainless steel - no risk of spark from contact with metal surfaces. | Lightweight aluminium tripod for use with stainless steel mounting bracket. Easily transportable, offers a stable platform when assembled. Allowing the lamps to be used at a variety of heights and positions. The tripod will extend the lamp to a maximum of 8 feet (2.4 metres) | Lightweight mild steel tripod with a zinc plated finish. For use with stainless steel mounting bracket, allowing the lamps to be used at a variety of heights and positions. Easily transportable, offering a stable platform when assembled. The tripod will extend to a maximum of 8 feet (2.4 metres) | ||||||
Mounting Bracket Part No. | - | LL-690 | LL-691 | LL-695 | LL-696 | LL-690 | LL-691 | LL-695 | LL-696 |
Additional Information | Optimum stability, positions the lamps in a raised position away from any residue. | The stainless steel mounting brackets allow for vertical or horizontal forward facing or upwards illumination. | The stainless steel mounting brackets allow for vertical or horizontal forward facing or upwards illumination. |
Leadlamp Magnets
The magnetic fixing kit allows the lamp to be mounted in any orientation, an ideal solution for quick and easy set up.
Product reference | LL-651 | LL-652 | LL-653 |
---|---|---|---|
Product description | Magnet Fixing Kit 2 x 36W | Magnet Fixing Kit 4 x 36W | Magnet Fixing Kit 2 x 18W |
(2 magnets) | (3 magnets) | (2 magnets) | |
Materials | Stainless steel mounting bar and polyurethane coated magnets to reduce risk of sparks from impact on metal surfaces | ||
Quickly and easily mounted in any orientation | |||
Spare Part No. | LL-650 | ||
Spare Product Description | 1 magnet |
Leadlamp Protective Films
The leadlamp protective film for use with 2 x 36W and 4 x 36W versions of the fluorescent leadlamp. Sold in packs of 3.
Product Reference | LL-640/3 | LL-645/3 | LL-645/3 |
---|---|---|---|
Product Description | Protective Film 2 x 36W | Protective Film 4 x 36W (110V) | Protective Film 2 x 36W 360° (24V) |
Materials | Protective film certified for use with the lamp in Zone 1 hazardous area - supplied with an easy peel foam back adhesive for ease of application. | ||
Additional Information | Designed to protect the outer polycarbonate tube from damage when used in cleaning, painting or blasting operations. |
Leadlamp Extension Cables
Extension cables stop the need for additional power supplies allowing for more lighting from one transformer. A full range of extension cables for use with 24, 110 and 230v units are available in lengths of between 15 & 30 metres.
Product reference | LL-675* | LL-661** | LL-666** | LL-660 | LL-665 |
---|---|---|---|---|---|
Product description | 15m 24v extension cable | 20m 110v extension cable | 30m 110v extension cable | 20m 230v extension cable | 30m 230v extension cable |
Core diameter | 4mm² |
||||
Materials | All cables are supplied with ATX plugs and sockets | ||||
Additional Information | Flexible way of lengthening the reach of the lamps - can be used at the start of a chain to allow the transformer to reside in a safe area or in the middle to allow 2 or more work areas to be lit from one power supply | ||||
Important! | The maximum overall length of cable in a chain must be carefully considered to ensure voltage does not drop below the minimum level |
** For use up to a maximum of 150m including all lamp cable.

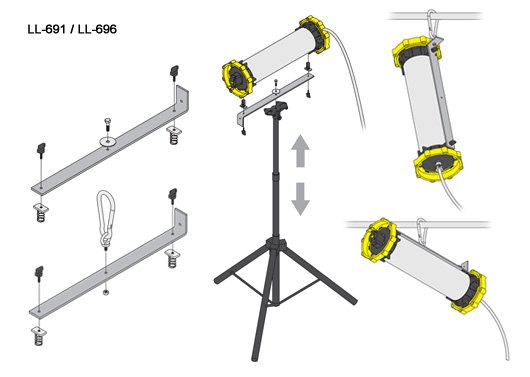

Leadlamp Universal Mounting Kit
The universal mounting kit allows the lamps to be mounted in a number of different ways, ideal for a quick and easy customised lighting solution.
Product Reference | LL-691 | LL-696 |
---|---|---|
Product Description | Universal Mounting Kit 2 x 36W (110V) | Universal Mounting Kit 4 x 36W (110V) |
Mounting Options | Can be used with the tripod stand or is supplied with a stainless hook and eye (karabiner) allowing the lamp to be clipped in a vertical or horizontal orientation. |
