Series 503 Solid Rubber Cable Reel


Special Features

  • Also available with mobile trolley
  • Solid, halogen-free solid rubber reel bodies, full protective insulation
  • Stable steel tube frame, zinc-plated and black powder-coated
  • GIFAS PROFLEXX H07 cable
  • High mechanical stability
  • UV and weather resistant
  • Impact-resistant, ageing-resistant and maintenance-free
  • Ergonomic shape, good carrying comfort
  • With thermal overload protection
  • Internal wedge brake
  • With insulating handle coating (BGI 608)
  • Built in accordance with VDE 0620 and 0623 Part 300 and 100
  • K2-identification

The GIFAS cable reels guarantees an absolute safety and proper function. Thanks to its robustness, it makes them suitable for diverse applications in industrial, construction and industry.Various mounting options are already available from stock.

Technical Data

Technical Data
DimensionsWxHxD=340x480x300mm
Dimensions of reel bodyØ 350mm
Weight (without cable)approx. 5.5kg
Protection categoryIP54
Protection classII

Capacities

3×1.5mm2 / 90m
5×1.5mm2 / 70m
5×2.5mm2 / 50m
5×4.0mm2 / 30m
5×6.0mm2 / 25m

Product Range

Item no.DescriptionInputOutputFusesSymbols

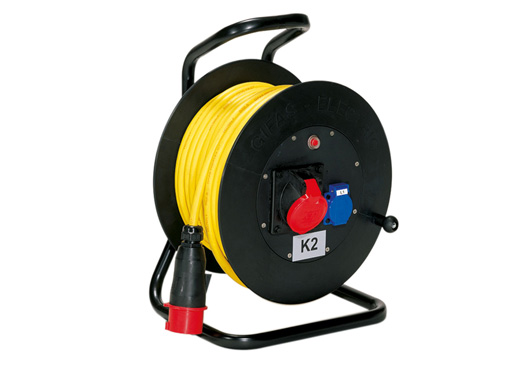

254911Solid rubber cable reel 50350m 5x2.5 mm2 with CEE 5x16A/400V1 CEE 5x16A/400V
2 protective contact sockets		No fuseGIFAS Red SocketGIFAS Small Blue SocketGIFAS Small Blue Socket

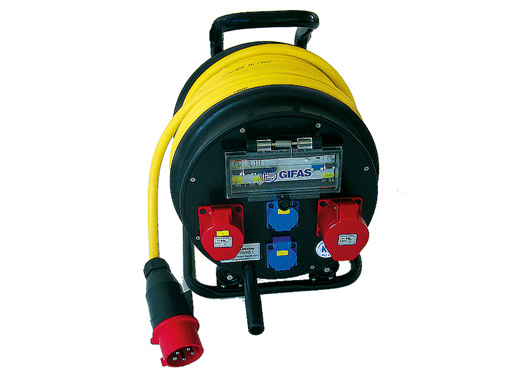

255370Solid rubber cable reel 50335m 5x6.0 mm2 with CEE 5x32A/400V1 CEE 5x32A/400V
1 CEE 5x16A/400V
2 protective contact sockets		MCB 16A 3p C
MCB 16A 1p C
RCCB 40/0.03A/4p		GIFAS Big Red SocketGIFAS Red SocketGIFAS Small Blue SocketGIFAS Small Blue Socket
249591Transport trolley comprising solid rubber distributor 7800 and solid rubber reel body 503 to hold supply cable25m 5x6.0 mm2 with CEE 5x32A/400V2 CEE 5x32A/400V
2 CEE 5x16A/400V
3 protective contact sockets		Neozed 25A
Neozed 16A
MCB 16A 1p B
RCCB 40/0.03A/4p		GIFAS Big Red SocketGIFAS Big Red SocketGIFAS Small Blue Socket
GIFAS Red SocketGIFAS Red SocketGIFAS Small Blue SocketGIFAS Small Blue Socket

Product Features

  • Solid, stable transport trolley with low-lying centre of gravity
  • Black powder-coated
  • Solid rubber tyres diam. 200mm bearing-mounted

Technical Data

Transport Trolley Technical Data
DimensionsHxWxD=1200x590x566 mm
Weight (complete)approx. 70.0 kg

All components can be supplied as spare parts. Other equipment options available upon request.
