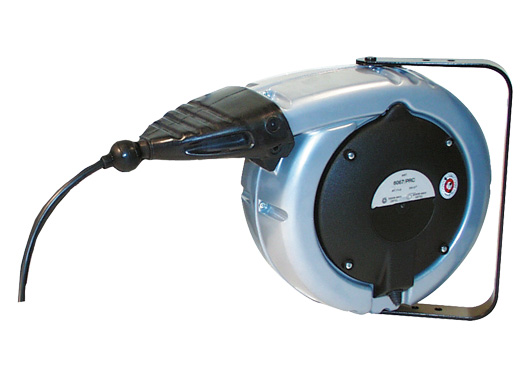

Special Features
- Fully-equipped and pre-set pull-out cable reels
- Sealed casing made from cast aluminium (silver-grey)
- Fastening clip
- Return spring made from special steel
- Special cable black, end cut smooth, no connection coupling
- Factory-set to continuous tension, adjustable locking mechanism
- Easy to handle, sturdy
- Easy to assemble
- Standard: IEC 1242
The GIFAS cable reels guarantees an absolute safety and proper function. Thanks to its robustness, it makes them suitable for diverse applications in industrial, construction and industry.Various mounting options are already available from stock.
Technical Data
| Technical Data | |
|---|---|
| Pull-out length | 8 to 24m |
| Slip ring | 2 to 5-pole |
| Operating voltage | max. 400V |
| Protection category | IP43 |
| Cable | H05VV-F or H07RN-F |
Product Range
| Item no. | Number of wires | Cross- section in mm2 | Cable length coiled +2.0m free | Output coiled in W | Output uncoiled in W | Current strength of the collector |
|---|---|---|---|---|---|---|
| 242741 | 2 | 1.0 | 24 | 1000 | 1700 | 10 |
| 242744 | 3 | 1.0 | 24 | 1000 | 1700 | 10 |
| 242747 | 4 | 1.0 | 24 | 800 | 1400 | 10 |
| 242751 | 5 | 1.0 | 16 | 800 | 1400 | 10 |
| 242742 | 2 | 1.5 | 24 | 1100 | 1800 | 10 |
| 242754 | 3 | 1.5 | 20 | 1100 | 1800 | 10 |
| 242745 | 3 | 1.5 | 24 | 1100 | 1800 | 10 |
| 242756 | 4 | 1.5 | 16 | 1100 | 1800 | 10 |
| 242749 | 4 | 1.5 | 21 | 1100 | 1800 | 10 |
| 242752 | 5 | 1.5 | 11 | 1500 | 2200 | 10 |
| 242755 | 3 | 2.5 | 12 | 2000 | 3000 | 20 |
| 242746 | 3 | 2.5 | 15 | 2000 | 3000 | 20 |
| 242757 | 4 | 2.5 | 10 | 2000 | 3000 | 20 |
Installation instructions
Suitable installation options
A, C, G and N = swivel motion
E and F = fixed position with adjusting screw Limited use with cover cap (cable inlet)
Cover Securing Mechanism
When the cover is fitted and in the case of a vertical cable uncoiling / coiling motion, the reel body is secured into the fastening clip.
| Item no. | Description |
|---|---|
| 242723 | Optional device |
