Special Features
- Pull-out cable reel made from hot-varnished aluminium and steel
- On the back is an additional bracket made from aluminium for secure ceiling or wall mounting.
- Optimum traction of the cable thanks to a steel spring
- The cable reel can be supplied with H05W-F or H07RN-F cables or without cable
The GIFAS cable reels guarantees an absolute safety and proper function. Thanks to its robustness, it makes them suitable for diverse applications in industrial, construction and industry.Various mounting options are already available from stock.
Technical Data
| Technical Data | |
|---|---|
| Ambient temperature | -5°C/+40°C |
| Max. coiling speed | 40 m per minute |
| Insulating voltage slip ring | 2.5KV |
| Protection category | IP65 |
| Cable | H05VV-F or H07RN-F |
| Suitable | - for 1 to 24-pin cables with a pull-out length of max. 53 m - up to 63A |
Product Range

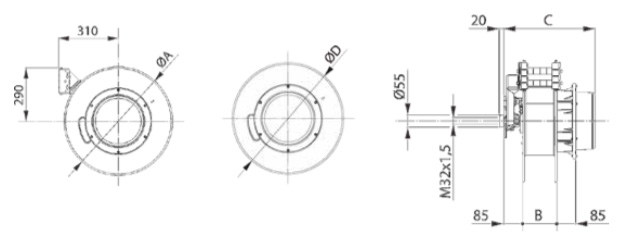

| Item no. | Number of wires | Cross- section in mm2 | Cable length coiled + 2.0 m Free | Output when coiled in W | Output when uncoiled in W | Cable | Type | Dimensions |
|---|---|---|---|---|---|---|---|---|
| 262751 | 5 | 6.0 | 15 | 17000 | 22000 | H05VV-F | 1 | A: Diam. 550 B: 160 C: 410 |
| 269415 | 3 | 2.5 | 29 | 2000 | 3500 | H07RN-F | 1 | A: Diam. 440 B: 160 C: 365 |
| 271838 | 3 | 2.5 | 39 | 2000 | 3500 | H07RN-F | 1 | A: Diam. 440 B: 160 C: 365 |
| 273423 | 12 | 1.5 | 15 | max. 4.5 A | H05VV-F | 2 | B: 190 C: 440 D: Diam. 550 |
|
| 274147 | 4 | 2.5 | 53 | 6000 | 8500 | H07RN-F | 2 | B: 190 C: 395 D: Diam. 550 |
| 274434 | 4 | 2.5 | 29 | 6000 | 8500 | H07RN-F | 1 | A: Diam. 550 B: 160 C: 365 |
| 274707 | 5 | 6.0 | 14 | 17000 | 22000 | H07RN-F | 1 | A: Diam. 550 B: 160 C: 410 |
| 276813 | 5 | 6.0 | 24 | 17000 | 22000 | H05VV-F | 1 | A: Diam. 550 B: 160 C: 410 |
