Key Features
- ATEX Approved for Zone 1 explosive Gas and Dust atmospheres
- Safe Extra Low Voltage
- Robust Durable Construction
- Choice of Stainless Steel or GRP Transformer
- Powers up to 4 Lamps
- 180° or 360° Fluorescent Configurations
- LED or Halogen task lights
- Lamps supplied with 20M SY Cable
- Fitted with ATX Plugs
- 110V or 230V Transformer Input Voltage Available
The Wolf Tank Lighting Kit provides a low voltage portable temporary lighting solution for Zone 1 Hazardous Areas where potentially explosive gases, vapours and dusts may be present.

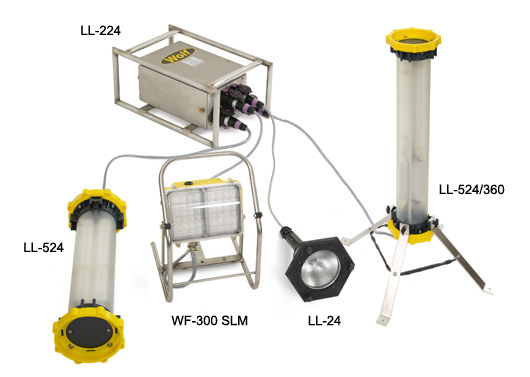

The Kit comprises a Zone 1 Ex transformer, 230V or 110V to 24V, supplying extra low voltage for use in tanks and vessels where low voltage lighting is a requirement. The Tank Lighting Kit allows for a number of different lighting solutions to suit many scenarios. By using various configurations of the LinkEx Fluorescent Leadlamps, LED Floodlite and the Handheld Flameproof Leadlamp, Wolf Safety can offer you a high quality selection of task and ambient lighting. Each lamp is supplied with 20m SY cable and fitted with ATX 2-Pole + Earth plugs for connection in the explosive area. For more information on the different configuration options available, please click here.
Easy maintenance is a key feature of this product range, meaning that for a fluorescent or halogen light, lamp replacement is quick, easy and readily available. Alongside this, the LED Floodlite has a ‘fitted for life’ light source.
A full range of accessories is available for the LinkEx Fluorescent Leadlamps and LED Floodlite, which offer solutions with a wide number of fixing and mounting options. These include: protective film for painting and shot blasting applications (fitted as standard on selected modesl), magnetic fixings, tripods, and stands to mount the lamp vertically and elevate if away from tank residue. Accessories for the Wolf Fluorescent Leadlamp are designed to fit the integrated Unistrut-compatible mounting points. For information on our full range of accessories available please click here. Wolf Safety also carries a full range of spares to minimise downtime for the user.
Typical applications include:- vessel entry, tank cleaning and routine inspection work, programmed preventative maintenance shutdowns in potentially dangerous confined spaces, all frequently encountered in the aircraft industry, oil & gas, petrochemical and utility markets.
Applications Include:
- Tank Cleaning
- Vessel Entry
- Offshore Oil & Gas
- Petrochem Plants
- Aircraft Maintenance
- Utility Markets
- Tunnel Maintenance
- Sewers and Drains
- Confined Space
| Product Reference | Transformer | Kit |
||
|---|---|---|---|---|
| Material Voltage Model | VA | Temp. Class & Ambient (°C) | Code |
|
| 4 x LX-400 180° Cabling (per light): 20m SY 2.5mm2 | GRP 110V LL-114/T3 | 320 | T3 -20 to +40 | LX-175 |
| SS 110V LL-124 | 350 | LX-185 | ||
| GRP 230 LL-214/T3 | 320 | LX-275 | ||
| SS 230V LL-224 | 350 | LX-285 |
||
| 3 x LX-400 180° + 1x 360° Cabling (per light): 20m SY 2.5mm2 | GRP 110V LL-114/T3 | 320 | T3 -20 to +40 | LX-176 |
| SS 110V LL-124 | 350 | LX-186 | ||
| GRP 230 LL-214/T3 | 320 | LX-276 | ||
| SS 230V LL-224 | 350 | LX-286 | ||
| 2 x LX-400 180° + 2 x WF-300 Cabling (per light): 20m SY 2.5mm2 (LX) 20m SY 4mm2 (WF) | GRP 110V LL-114/T3 | 320 | T3 -20 to +40 | LX-137 |
| SS 110V LL-124 | 350 | LX-157 | ||
| GRP 230 LL-214/T3 | 320 | LX-237 | ||
| SS 230V LL-224 | 350 | LX-257 | ||
| 4 x WF-300 Cabling (per light): 20m SY 4mm2 | GRP 110V LL-114/T3 | 400 | T3 -20 to +35 | LX-135 |
| SS 110V LL-124 | 400 | T4 -20 to +30 | LX-155 | |
| GRP 230 LL-214/T3 | 400 | T3 -20 to +35 | LX-235 | |
| SS 230V LL-224 | 400 | T4 -20 to +30 | LX-255 | |
| 8 x LX-400 180° (2 x chains x4 linked) Cabling (per light): 5m light SY 2.5mm2 | GRP 110V LL-114/T3 | 400 | T3 -20 to +35 | LX-177 |
| SS 110V LL-124 | 350 | T3 -20 to +40 | LX-187 | |
| GRP 230 LL-214/T3 | 400 | T3 -20 to +35 | LX-277 | |
| SS 230V LL-224 | 350 | T3 -20 to +40 | LX-287 | |
| 4 x LL-524 Cabling (per light): 20m SY 4mm2 | GRP 110V LL-114/T3 | 400 | T3 -20 to +35 | LX-115 |
| SS 110V LL-124 | 350 | T3 -20 to +40 | LX-125 | |
| GRP 230 LL-214/T3 | 400 | T3 -20 to +35 | LX-215 | |
| SS 230V LL-224 | 350 | T3 -20 to +40 | LX-225 | |
| 3 x LL-524 + 1 x LL-524/360° Cabling (per light): 20m SY 4mm2 | GRP 110V LL-114/T3 | 400 | T3 -20 to +35 | LX-116 |
| SS 110V LL-124 | 350 | T3 -20 to +40 | LX-126 | |
| GRP 230 LL-214/T3 | 400 | T3 -20 to +35 | LX-216 | |
| SS 230V LL-224 | 350 | T3 -20 to +40 | LX-226 | |
Changes may be made to the above specification without notification, details are available on request.
Model: LX-275
CE Marked to ATEX directives and IECEx
Sealed dust tight & water immersion to IP67
Hi-powered LED white light up to 3250 lumens / 32W (total : 13,000 lumens) fitted with 20m cable and ATX plug
LED Luminaire weight excl cable 3.6kgs / X’former 21kgs
Area of classification (Gas): Zones 1 & 2
Temp. classification (Gas): T3
Available in 230V input /24V output
Package includes:
4 x LX-400 LED luminaire
1 x 400VA Transformer in GRP housing
Model: LL-216
CE Marked to ATEX directives and IECEx
Sealed dust tight & water immersion to IP67
White light high output up to 5800 lumens / 62W (total : 23,200 lumens) fitted with 20m cable and ATX plug
Fluorescent lamp weight excl cable 5.5kgs / X’former 21kgs
Area of classification (Gas): Zones 1 & 2
Temp. classification (Gas): T3
Available in 230V input /24V output
Package includes:
3 x LL-524 fluorescent Luminaire
1 x LL-524/360 fluorescent Luminaire 1 x 400VA Transformer in GRP housing
Model : LX-237
CE Marked to ATEX directives and IECEx
Sealed dust tight & water immersion to IP67
Hi-powered LED white light up to 3250/5200 lumens / (16,900 lumens) fitted with 20m cable and ATX plug
LED Luminaire weight excl cable 3.6kgs / X’former 21kgs
Area of classification (Gas): Zones 1 & 2
Temp. classification (Gas): T3
Available in 230V input /24V output
Package includes:
2 x LX-400 LED luminaire
2 x WF-300 LED Floodlite
1 x 400VA Transformer in GRP housing
Please contact us to rent this product.
